    3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E

    Ask Lasest Price
    Brand Name : AISON
    Model Number : ZHD39001C30-V1
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E

    3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E


    General Description

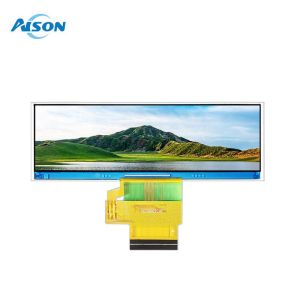

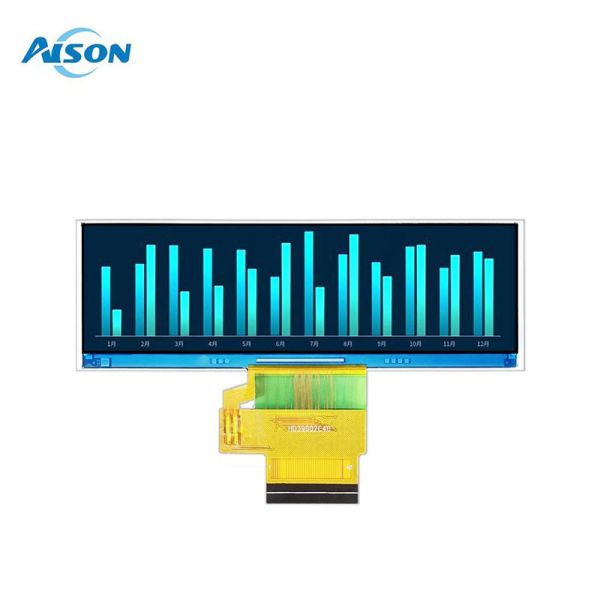

    This is a new 3.9 inch Bar type color landscape IPSTFT LCD display with resolution 480x128 pixels. This 3.9" bar display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, POP, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.


    ZHD39001C30-V1 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.9" contains 480 RGB X128 pixels and can display up to 16.7m colors.


    This 3.9 inch bar TFT is built in with Driver IC NV3047E it supports RGB interface.This 3.9'' inch TFT LCD module boasts an impressive 900 nits luminance, ensuring crisp and clear visuals in various lighting conditions. Perfect for applications where visibility is crucial.It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

    General Data

    Model Name3.9 inch Bar LCD Module
    Resolution480x128
    Model Size (W*H*T)mm103.20 x34.85 x2.4mm
    Display Area (W*H)mm
    95.04 (H) x 25.34(V)
    InterfaceRGB
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness900 cd/m2
    Pin number40 pin
    Contrast Ratio
    1200:1
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

    Drawing


    3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E


    Product Details


    3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E


    TFT Applications:

    This 3.9" bar display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, POP, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.


    3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E
