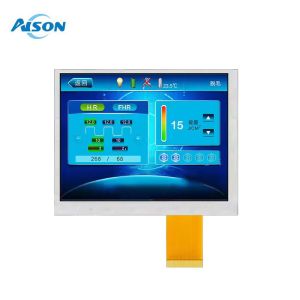

5.6 Inch Industrial TFT Display 250cd/m2 LCD Module Display 640x480 With RGB Interface

Display General Description

P056I640480TE-W01 is a 5.6-inch diagonal 640X480 standard TFT LCD display module. The view direction is 12 o'clock, grayscale inversion is at 6 o'clock, and the aspect ratio is 4:3.

Measuring 126.5×100 mm, with an active area of 112.896×84.672 mm,the TFT display module integrates ILI6192A-01 and ILI5481A driver ICs, supporting a 24-bit RGB Interface. Its 5.6-inch TFT LCD panel boasts a brightness of 250 cd/m2 and a contrast ratio (typical value) of 1000:1. Thanks to its anti-glare display surface, reflections are minimized, ensuring superior image quality.

Operating within a temperature range of -20 to +70℃, and with a storage temperature spanning from -30 to +80℃, this module is built to withstand diverse environmental conditions.

General Data

Drawing

Product Details

TFT Applications

This TFT LCD module is versatile and suitable for a wide range of applications:
Mixing Consoles
Medical Monitoring Equipment
Industrial Equipment Control Panels
